Why Should I Base Metallics? A Tutorial.

by on January, 01, 2014 in Tutorial - Comments Off on Why Should I Base Metallics? A Tutorial.

Why Base Metallics?

dakkajet8That’s a good question! Some may not even know the technique exists but it’s a very easy thing to do to make your metallics “pop” better – and it’s based on science!

The stuff in paint that makes the color is called pigment. The pigment is suspended in a variety of suspensions until it gets painted on something and the suspension fluids dry. It’s usually granular, like a powder, which, on a microscopic level, is round-ish.

Metallics on the other hand are tiny, tiny flakes. These flakes are larger than the powder for pigments. If they weren’t, there wouldn’t be enough surface area to reflect off of and be shiny to appear metallic. This is the main reason why metallics don’t cover a surface as well as pigmented paints. Since they are so irregular, they don’t typically lay nice, flat and close together like fine grain powdery pigment does. This causes gaps (although very, very small gaps) to occur between the flakes. This is where basing for metallics comes in.

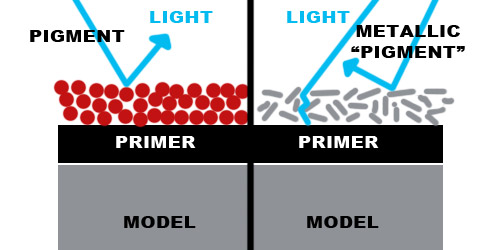

Let’s look at two surfaces very close up (magnified a billion times or so 😉 ) One is a surface painted with pigments (left) and the other with metallics (right).

As you can see, pigmented paint tends to settle into a tightly packed state, not a lot of space for light to penetrate to the surface of the model. This illustrates a few things; finer ground pigments cover better, and many smooth coats cover better than one thick coat. The metallics, however, don’t settle in as tight as the powdered pigment due to its shape (or irregularities).

Note: Yes, there is a primer. Yes, it’s a black primer. I almost always prime black and a lot has to do with treating metallics and I prefer a darker tone to my models.

In image number two I’m simulating (on a somewhat abstract scale) the travel of light to the surface of the model. On the left, the tightly packed pigment lets almost no light through to the surface. On the right, the light has enough room to reflect down to lower layers, sometimes even reaching the surface of the model before being bounced back to the surface and scattered to the sky.

Now here’s where the science is – how reflective color works. Light comes to us from the sun composed of many different wavelengths which we perceive as the visible color spectrum. ROY G BIV for all of you mnemonic folks out there. When that beam hits a surface, the surface absorbs some of those wavelengths, bouncing the rest back. The wavelengths that are not absorbed are what we perceive as the color of the object. An example: if I see a blue Frisbee, it’s absorbing ALL of the colors in the spectrum EXCEPT blue, which is reflected and is interpreted by our eyes as blue. Weird, I know. Science class is over, now back to painting.

Looking again at image 2, we see the pigment absorbs all but the red spectrum and bounces red back out to the world. In the metallics side, we see two different things happening. One, the metallic fragments bounce back almost ALL of the color spectrum, not absorbing anything (we’re assuming a silver metallic for this example). Two, not all of the light is reflected, some bounces around inside the metallic maze until it hits the black primer, and stops.

Science, Part II: Black absorbs ALL wavelengths and reflects nothing back.

Now let’s take an even CLOSER look at the metallic painted surface…

On the left we see the light rays interacting with the metallics, some of it bouncing back out, nothing being absorbed by any metallic surfaces. Some of the rays are absorbed by the black primer underneath. On the right we see light reflecting back out as in the other example but note there’s something else happening. The rays that work their way to the surface aren’t absorbed by the black, they absorb only SOME of the frequencies, changing the color of the beam as it passes through and eventually bounces back out. In this case, it’s green. This green will subtly change the color of the metallics. The effect can be described as a “muddying” of the metallic color.

Well, I can see what you’re thinking already… “Why not just put down another layer of paint?” Well, you could. There’s a few issues with this. Metallic paints are generally thinker to start with. Too many layers will quickly obscure finer details. Also, most likely you’re thinning your paints already to get a smooth, even surface and adding another layer would defeat that purpose. A thin layer of primer or black will keep your surface details crisp, absorb any stray light that reaches the models surface through an already thinned paint layer and the light will not change it’s color on it’s way through the maze of fragmented metal.

Now this isn’t to say that metals can’t have color. Bronze, brass, copper, gold, anything anodized, etc. is a colored metal, but basing in black means you have the effect you want and expect from the pot of paint. Take gold for instance; If I’ve got a nice yellow gold, and my base color is blue, the color reflected back will subtly change towards the green (yellow+blue=green). With a black surface, the nice shiny, bright gold i want will remain just that, shiny bright yellow gold.

A word on priming with white. “Ok”, you say, “If black absorbs all frequencies, white must reflect all frequencies, right? Wouldn’t it be better to have ALL of the light reflected back through the metallic shards? This would make it even shinier, right?”

Well, yes, but the problem there is if everything is lighter, there’s no CONTRAST for the metallic to be compared to. Using a black underneath does absorb the light but it’s that absence of light that increases the contrast in the reflection of a metallic. I know it sounds daffy but take it from a 15+ graphic designer vet, it works.

So there you have it.  A long winded, scientifically based exposition on why you should base your models metallic areas in black before painting the metals.



Later!

Detailed Masking for Airbrushing

by on March, 04, 2012 in Imperial, Terrain, Tutorial - Comments Off on Detailed Masking for Airbrushing

I’m considering this a lesson learned and don’t mind passing this along 🙂

When I started painting the large aquilla on the top deck I was originally going to mask it out and airbrush it in layers. After looking at it for a few minutes I decided to use a brush instead thinking how difficult masking this off would be and how long it would take. Stoopid me.

I started with a brush and tried my hardest to make the layers even and without brush marks. The foundation color, Deneb Stone, went on ok. A little sloppy but figured the next two colors would compensate for this. I put down two layers of Deneb Stone, then two layers of Bleached Bone. Because of the lighter colors over black primer, it was nearly impossible to achieve a smooth finish before hitting the Skull White. I had almost four hours into just the aquilla.

This started me thinking about how long would it really have taken to mask off the intricate aquilla. Well, I found out tonight. A little over an hour to do both. It took me another 10 minutes to put down two layers of Skull White and 15 minutes to thoroughly clean my airbrush, another 5 to remove the masking tape. I’m assuming with two more colors to apply and dry, those would have taken about another 30 minutes. This would have been a total of around two hours. I had already wasted 4 hours on brush work (grrr) so I’m assuming if I would have started masking instead of painting, I would have saved around 3+ hours on it.

So, what do I do? Turn it into a tutorial! Detail masking for airbrushing.

Here’s about halfway through the first aquilla, pretty intricate – and a little daunting.

masking the aquilla

I’m using lo-tac blue painters tape. I stick it down lightly to my self-healing cutting mat. I use a steel rule to cut the skinny channel sized pieces of tape. I cut angled pieces and apply them to the edges and push them into place using a rounded end dental sculpting tool. This is really easy, pushing the tape into place and making sure it fits snuggly against the edges of the raised aquilla.

using dental tool to push tape into place
intricate application of masking for airbrushing

The next tip I want to show is how to apply the tape around the curves – the most difficult part. Cut a piece of tape larger than the area you’re going to mask off and gently stick it in place. Use the dental tool to push the tape into the corner. This is similar to copper tooling (do they still do that in schools?). The tape it flexible enough and should form itself fairly well to the shape. Use a sharp exacto to trim out the shape, erring on the higher side of the lip. Take care to move slowly as the blade can slip and cut into other areas (I did it a few times too)

tricky masking for painting

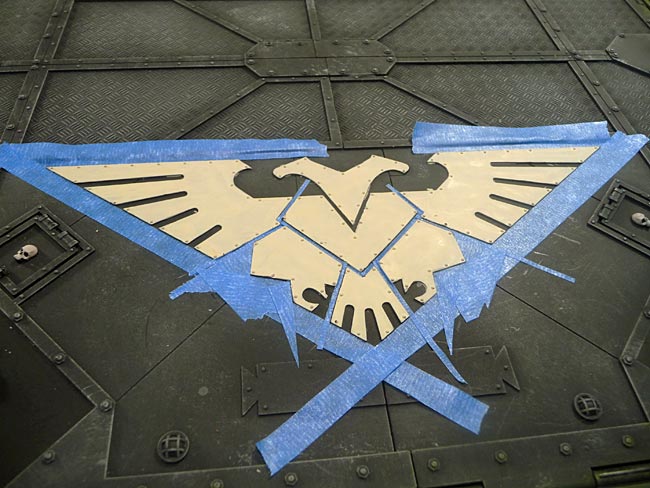

Here’s the detail masked aquillas.

the maksed aquilla

Then the rest of the landing pad is taped/papered off to prevent overspray.

paper masked to prevent overspray

I re-coated the squilla in Bleached Bone to smooth out the surface before applying the white.
recoated with bleached bone

Then applied two layers of Skull White.
Two coats of Skull White

Here’s the skyshield with the masking tape removed and a closeup.
Aquilla unmasked!
close up of unmasked aquilla

A nice, even, and solid white. A few small spots that will need touchup but these are actually from when I was using a brush.:)

The next step will be the chevroned panels, then I’ll do the weathering.

Later!

Tutorial Time! Chipped Paint Weathering

by on August, 14, 2010 in Apocalypse, Skullhammer Tank, Tutorial - Comments Off on Tutorial Time! Chipped Paint Weathering

TUTORIAL TIME!

Biff Gunhed over at Warseer asked about the “stippling”method I use to weather the paintjobs on my vehicles now. I’ve reached that point and made a visual tutorial of how to do it (at least how I do it)

I choose a Chaos Black/Scorched Brown as a “primer”, or base color for my wearing. It seems most natural for a red based paint job and works well for me. The grey sponge at the upper left is either a blister sponge or one I cut from a larger piece of some kind of packing foam. I’ll use this, let it dry out, then cut off another angle and keep doing this ’til I run out.

Schorched Brown - Black Primer Layer

Schorched Brown - Black Primer Layer

Now our test subject painted up…

"Fresh" Painted Tank

"Fresh" Painted Tank

Here’s the sponge dipped into the paint and then kinda “sponged” off a bit on my tile palette – this is similar to removing most of the paint for dry brushing.

stipple sponge for chipping

Stipple sponge for chipping

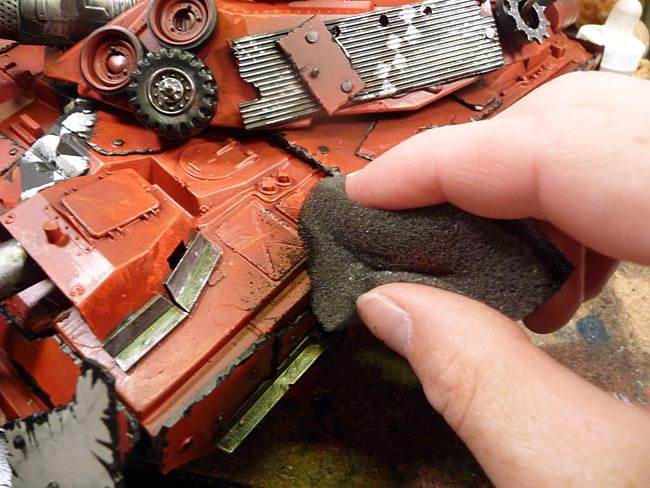

Apply the sponge to the surface of the model, focusing your attention on edges, places where natural wear patterns would occur and places you want to muck up basically.

Applying sponge technique for paint chipping

Applying sponge technique for paint chipping

You can leave more paint on for larger areas of wear, take some time to experiment on how much you need to achieve the effect you want. TIP: If you’re unsure as to how the first dab or two are going to look and are afraid of “ruining” something, test it in a spot lower on the vehicle and in the back, somewhere out of the way of normal viewing angles.

Here’s the vehicle all dabbed up…

First wear layer applied

First wear layer applied

And here’s a close up of the area I started at…

Close up of weathered paint

Close up of weathered paint

Coming UP: Part II

Paint Chipping Tutorial Part II

by on August, 14, 2010 in Apocalypse, Skullhammer Tank, Tutorial - Comments Off on Paint Chipping Tutorial Part II

I did the base color for both tanks at the same time and I’ll show the second step on the turret of the second tank.Here it is all dabbed up.

Worn Paint Layer

Worn Paint Layer

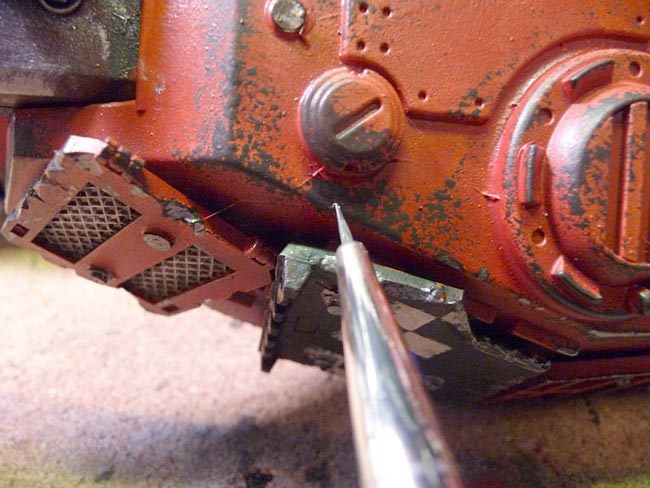

I used a 20/00 brush for this part – no particular reason, it’s just what I happened to grab. It does happen to help when touching small pinpoints as you’ll notice in the final step.I applied a thinned down Boltgun Metal to any part of the sponged paint from the last step where it goes over and edge. I also fill in some of thelarger areas that are basically solid fills and then feather off the edges. I also dab the tip of the brush in some, but not all, of the smaller spots. Put the silver closer to the main area or starting point of the wear and let it fall off as you get further away.

small brush with botlgun metal

Small brush with botlgun metal

Here’s the turret when finished. Note that as I get farther away from an edge (say the front crest of the turret), there’s less metal color and eventually only the brown/black spots? You can increase the amount of wear by adding more brown but not have to add any more metal as the metal that’s already there tells you it’s chipped paint and your eye fills in the rest of the story. This means you don’t have to be absolutely literal in you application of the Boltgun Metal.

Application of Boltgun Metal - scratch layer

Application of Boltgun Metal - scratch layer

The turret put back on the tank…

After Chainmail Silver

After Chainmail Silver

And both tanks as they are now.

Weathering done

Weathering done

I’ve only done the metal parts on one so far. I spent about 2 hours doing the base chip color anddoing the metal on one tank. I figure it’ll be about another hour to finish up the metals on the second tank. The next step will be to dirty it up with a coating of Badab Black and some Devlin Mud for variation.Then the final details and sealing.
