Doesn’t look like much but spent some time working on the deff arsenal tonight. I detailed up the interior space in the nose tonight and finished off the gun receivers that “should” extend back into the fuselage of the plane.
Things seem a bit open and unfinished in this space and that’s because it is. Now that the main two kannons are finished I’ll be adding some big shootas to the sides and then moving to the rokkets in the nose and the rest of the weapons that will be attached to the sides of the nose. Lots and lots of fun!
Three hours and two large barrels – it’s all I got tonight, but it’s a start.
I didn’t have the room I thought I did when I was sketching things out away from the model so I don’t thing I’ll have room for the belt feed, oh well.
Here’s the pics!
OK, did some research and found a gun that gives me the look I want in the nose.
It’s a short barreled, drum fed M2 .50 machine gun. I did some sketching to see how it would fit within the space of the nose and decided against the drum feed and go with a belt feed that goes into the center space between the guns. I can include a couple of hatches down the nose for access to the ammo hoppers.
The barrels won’t be as long as what’s in the sketch or as short in the photograph, it’s just enough to give me the right idea. I’ll add a couple of big shoota/dakka gun type weapons on either side to fill out the space with more dacha.
Whew! Now I can’t wait to get home tonight and start cutting’
Cockpit is done for now.
I almost put this aside earlier this week as I ran out of steam. Painting the cockpit made me want to do more painting and not more building. Thankfully for all of you ( 😉 ) I pushed through and started dabbling with the Deff Arsenal. I wasn’t too enthused about this as I had no real idea as to how I was going to get everything to fit, at least everything I had pulled out of my bitz that I thought should have gone into it.
I was glueing the weapons together and randomly placing guns and rockets, trying to get a feel for what should go where and what it should look liek in general when I placed the battlewagon upgrade kill kannon on the the upper nose. It really gave the feel of an eye so I played around with various tubes and realised the kannons looked too big (gasp?!) and somewhat out of place. They were really big but tended to look like two big kannons instead many barrels of smaller calibre guns slapped together. Then it struck me…
“Scratch build yourself some silly, mulit-barreled, water cooled looking machine guns with various ginourmous barrel diameters? While you’re at it, do two – one for either side! Yeah!”
So I’ve decided to scratchbuild a set of guns that look like oversized big shootas with cylinder ammo feeds with smaller, similar big shootas attached to the sides. I think this will give the deff arsenal a better “more dakka” look rather than the “more blasta” look the kill kannons would have given it. This also frees the kannons to be used on something else – something ground based. This doesn’t mean it’ll be the only gun, I’ll still be loading more weapons around the missile bays as well.
So now I’m off to the research phase on what this should look like. I’ll try to draw up some plans before going straight to the knife and p’card.

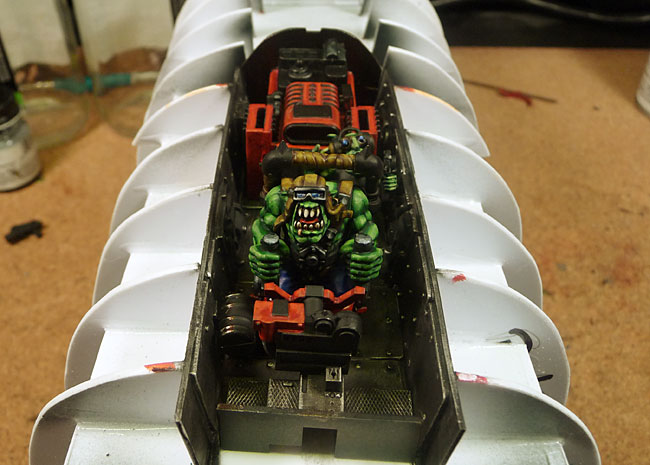

Spent some time slapping paint inside the cockpit of the blasta bommer last night. Figure I’m about half finished. I’m not going to rush things and want to make sure I spent enough time to make each part of this thing right.
The pilot and comm-grot is nearly finished and some of the reds have been blocked out and the metal decking the once over.
Some people had questions about some of the details – or lack thereof. I won’t be making a separate bombadier – he’d be stuck in the belly of the beast. The cockpit canopy will be open so you can see inside, most likely slid back or something. I just want to be careful that it doesn’t obscure too much of the interior details toward the back that I’m taking the time to make and paint.
In other news: Some of you know Big Shoota.com as a an out of date place for my ork pics and such. Well, it’s been updated recently and is continuing to be updated with new material. It was also originally intended to be a site that would grow into a resource on building and painting miniature models. BigShoota is almost 7 years old now and I’m finally getting around to adding this new section to the web.
The Big Mek Manual is a collection of things I’ve learned about modeling and miniatures over the last 30+ years. It’s going to be the site I wished I could have found in one place when I started really “painting miniatures” way back when. Basically a book about miniature modeling painting for the beginner who can use it to learn the basics and advanced techniques all in one place. It’s going to be as comprehensive as I can make it and easy to find the things you want to know – whether you’ve just picked up your first box of plastics or been painting metal models since there was lead in them.
I know, big ideas, big talk. I’ve got tons of stuff already written and it’s mostly now about getting things organized and formatted for the web (it was originally going to be a PDF book). I’ve started the process already and welcome you to take a spin around and let me know what you think. I’m going to start with only the basics, and once the basics are finished, I’ll add the intermediate techniques. When that’s done I’ll do advanced stuff and continue to update and add as time goes on.
This has been a pet project of mine for about five years now as a way to give back to everyone who has given me the inspiration to dive into this hobby and give to those who were once in my shoes the guidance they may be looking for.
I’m back from vacation and started it off right by whipping those parts grots inta shape!

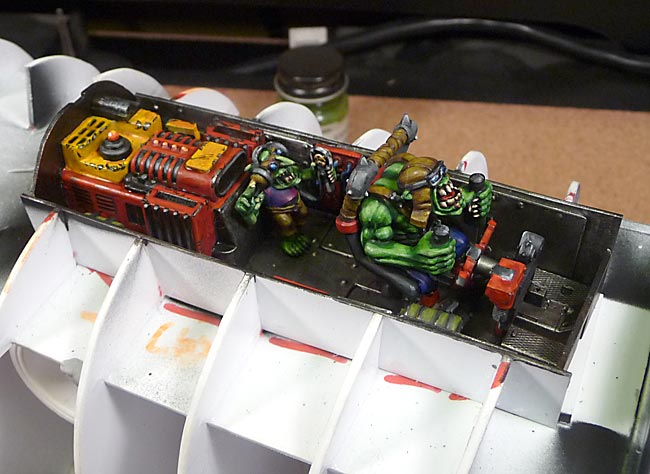

Started work on the cockpit today. Put some gubbins in the back, a pilot, a control yoke and a commo-grot. Various plates, planks and rivets round out the detail.
Here’s the parts pulled out so I can prime and paint.
The big radio gubbin’ thing is a part from an old space ship model I’ve had lying around for about 25 years.The pilot, of course, is from the trukk kit and the grot’s from the stompa kit.
Here’s the detail of the interior plating…
The black marked areas are where the other cockpit parts are going to sit. I marked them out so I didn’t rivet any areas I didn’t have to.
I’m out of primer so there’ll be a little bit of running to do today before I can move on.
I guess the grots were let loose tonight so we got a bunch of little stuff done tonight!
I fumbled around in my head all day during work, trying to figure out how I was going to do the rokkets in the nose. I wanted them to kinda stair step, creating an angle that matched the vertical vanes to compliment the different angles going on in the shape of the nose. It all came down to biting the bullets and making “stairs” upon which the ends of the rokket tubes will project out of.
The outward ends of the tubes were to be the same length for consistency (?) so that meant the supports behind the tube mounts were going to have to change. This first pick shows how I achieved that.
Yes, tonight was about cutting lots and lots of tubing with tons of clean up. My grots fingers will be sore for a day or two after this… (and these aren’t the half of it!)
and all of the stair step platforms in place.
Then cutting more tubing to make the rokket tubes and mounting rings…

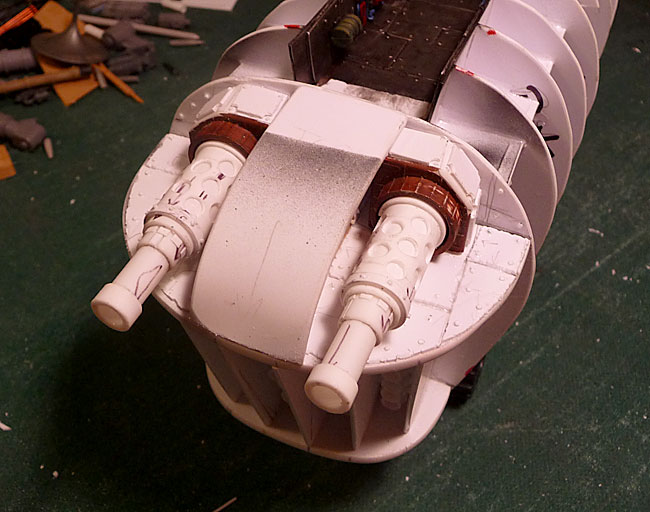

…and viola! The rokket tubes in the nose are done.
There were a bunch of different things going on in my head while trying to figure out what I wanted it to look like, and of course, this was the most time consuming and fiddly one. Now that it’s done I’m glad I went this route. It adds a lot of depth to this part of the model, and besides, it was a lot easier doing the rokkets while the front plate wasn’t mounted to the rest of the fuselage.
I still need to put some rokkets in a majority of the tubes and I might finish off the top center rib over the nose (it’ll split up the deff arsenal weapons) before gluing the whole shebang to the fuselage.
Whew! Long night of work and off to bed.
Putzin’ around with a few small things over the last few days. Built the front nose intake. The top/bottom plate and vertical posts/vanes are glued together but poster tacked into place to hold them until the glue dries. I did this so I can remove it from the main nose plate and have access to put in all the little rokkit inside, then I’ll glue it down.

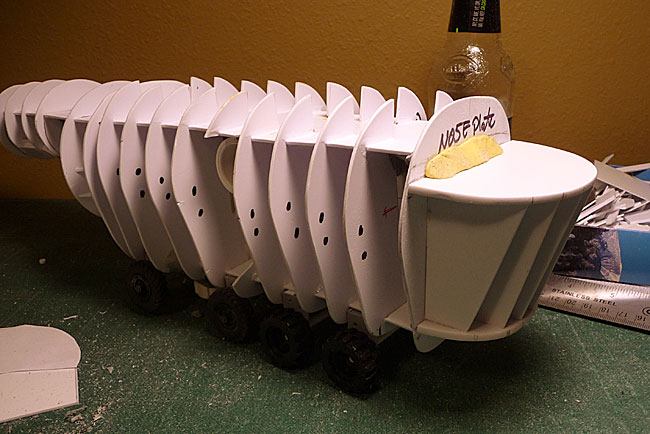

I also figured out how the wheels were going to go. They seem to be balanced enough to stay level and I’m hoping they’ll support he final weight, although I’ll rarely ever use it without the tripod. I also puttied the front plate onto the fuselage – this is what the front nose plate will be glued to.
I’m working my tail off here!
I’ve now paneled up the entire tail wings. I created smaller plates using the original struts and wing panels as templates. Then I trimmed them a bit smaller and cut them into interesting shapes, sanded them a little and glued them in place. Here’s a support and the upper wings underside panels.
The finished upper tail section…
And the upper tail piece glued to the engine supports.
I’m finished with the tail for the moment, I probably won’t come back to it until I’m ready to incorporate it into the fuselage.
Up next – tires, then the nose!
That also means…. updates!
I wanted to get the vertical stabilizers done today and that meant doing some of the detailing/paneling on the rear wing section to accomplish this. Here’s how I put it together.

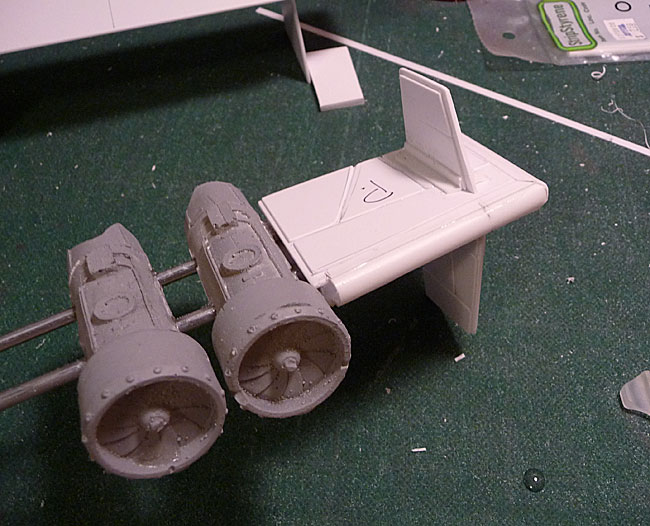

I superglued the engines in place and sanded all the edges on the wing panels. Then I used H-Beams to create the slot the metal bars will slide into for support…
Then I used the same thickness of channel to create a sandwich for support.
Then I glued the top piece to the wing and used tubing to create the leading edge like I did on the forward wings. I then cut panels into smaller pieces adn glued them to the vertical stabilizer wings, then glued them in place using angle iron.
Then I used two-part epoxy to glue the wing tips onto the metal bars. And a shot of the wing placed on the frame.
I still need to shore up the space between the engines and do a similar plating to the upper wing section. Once that’s glued into place I can move on to the wheels. After that, deff arsenal! Whooo hooo!
